Bulkhead Barbed Fitting

I-Shenchi yazisa i-Bulkhead Barbed Fittings ekumgangatho ophezulu, eyenzelwe ngokukodwa ukuhambisa imibhobho ngokusebenzisa iipaneli zezixhobo ngelixa ibonelela ngokutywinwa okuthembekileyo. Yenziwe ngobhedu, i-SUS304, kunye ne-SUS316L yensimbi engenasici, ezi zifakelo zinika ukuxhathisa okuqinileyo kwe-corrosion kwaye zilungele uluhlu olubanzi lweemeko zokusebenza.

Ulwakhiwo lweMveliso

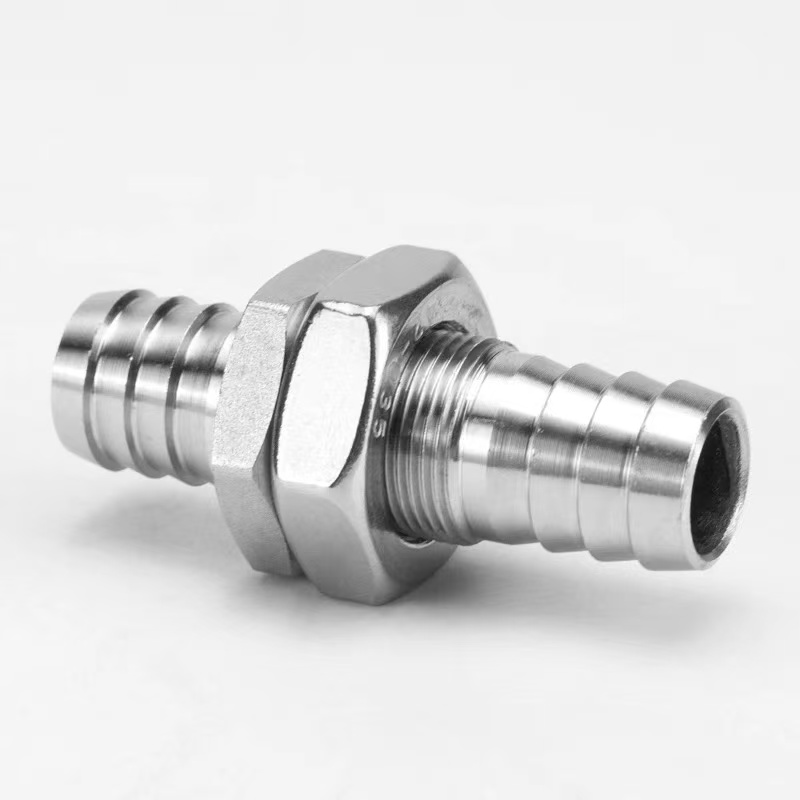

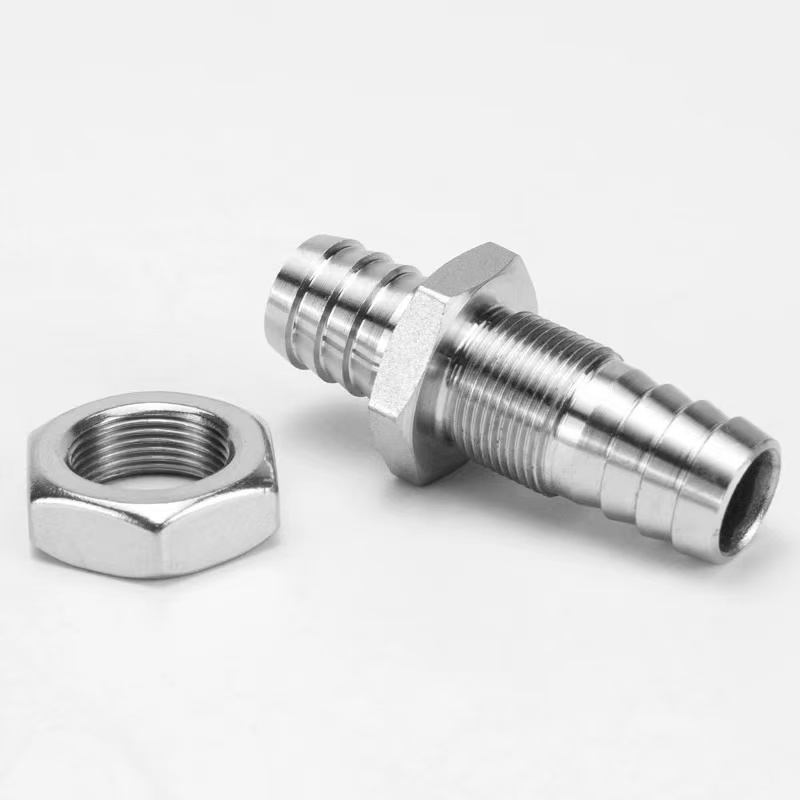

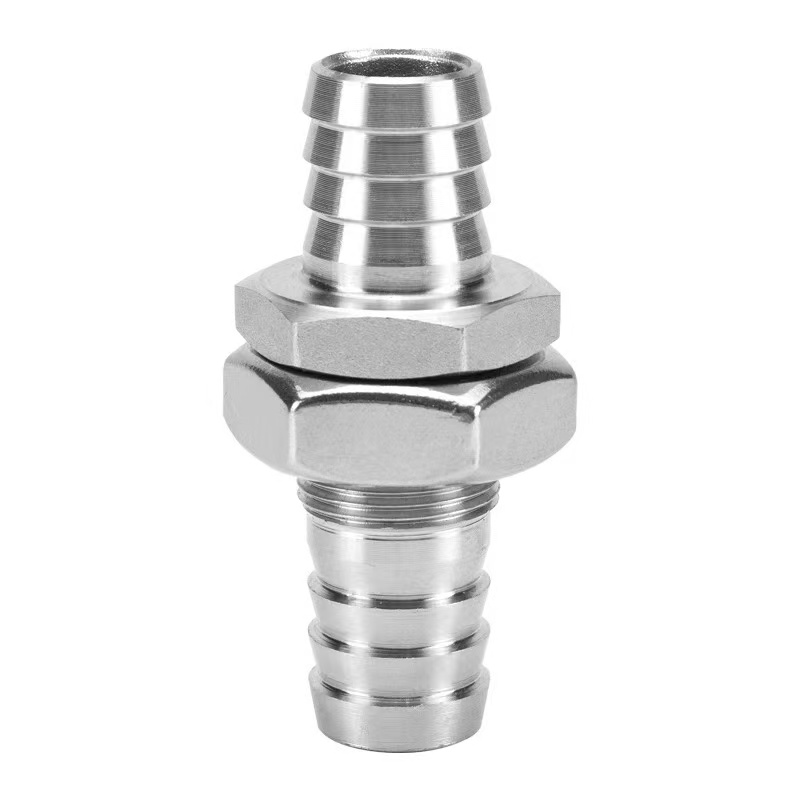

Ulwakhiwo lweBulkhead Barbed Fitting lubandakanya imicu ye-bulkhead, i-nut yokutshixa, kunye noqhagamshelwano lwe-hose enehlabayo. Ngethuba lofakelo, kuphela umngxuma wepaneli ofunekayo; ukuqinisa i-nut kugqiba inkqubo yokulungisa kunye nokutywinwa.

Isiphelo se-barbed sine-anti-slip groove design, eqinisekisa uxhulumaniso olukhuselekileyo xa lusetyenziswa nge-hose clamp. Ezi zixhobo zisetyenziswa ngokubanzi kwiikhabhinethi zokulawula, izixhobo zokunyanga amanzi, izixhobo zonyango, kunye nezinye iindawo ezinxulumene nazo.

IiNkcazo zeMveliso

Izinto eziluncedo kwisakhiwo

I-Bulkhead Barbed Fitting ngumbhobho olungelelanisa ngokukodwa ukuhanjiswa kwemibhobho ngokusebenzisa iipaneli zezixhobo, i-enclosures, okanye i-bulkheads ngelixa ubonelela ngokutywinwa okusisigxina. Isakhiwo salo esiphambili sibandakanya icandelo lentambo ye-bulkhead, i-nut yokuvala, i-gasket yokutywina, kunye ne-barbed hose connection. Ngethuba lokufakela, kuphela umngxuma we-diameter ehambelanayo kufuneka yenziwe kwipaneli. Icandelo lentambo yokulinganisa ligqithiswa emngxunyeni, kwaye i-nut iqiniswe ukusuka kwelinye icala ukugqiba inkqubo yokulungisa kunye nokutywinwa.

1. ISakhiwo sokuLungisa iintloko ezininzi:Ubude becandelo lomsonto bulungelelaniswe nobukhulu bephaneli eqhelekileyo. Emva kokuba i-nut yokuvala iqinisiwe, yenza ukulungiswa okuqinileyo kunye nephaneli, ukuqinisekisa ukuba ukulungelelaniswa kuhlala kukhuselekile naphantsi kwemikhosi yokutsala yangaphandle.

2. UQhagamshelo lweThumba elineBarbed:Icala elinye okanye omabini ephaneli abonisa amazinyo anamazinyo anamazinyo okufaka ithumbu kunye nokwenza uqhagamshelo olutywiniweyo ngombhobho obambezelayo. Isiphelo esihlabayo samkela uyilo lwe-anti-slip groove ephindwe kabini, enikezela ukuxhathisa okuphezulu kakhulu kokuphuma kunezixhobo eziqhelekileyo.

3. Inkqubo yokutywina:I-rubber gaskets okanye i-O-rings inikezelwa kumacala omabini ephaneli. Xa i-nut iqinisiwe, i-gasket yokutywinwa ixinzelelwe, ifezekisa ukutywinwa kwamanzi kunye nothuli-uthuli kwindawo yokuvula ipaneli, kunye nomgangatho wokukhusela ukuya kwi-IP65 okanye ngaphezulu.

Indlela yokuFakela

I-Shenchi's ehlala iBulkhead Barbed Fittings kulula ukuyifaka. Uqhagamshelwano olukhuselekileyo nolutywiniweyo lunokufezekiswa ngamanyathelo amathandathu nje:

Inyathelo 1: Ukulungiswa komngxuma wephaneli

Yenza umngxuma ojikelezayo ohambelanayo kwiphaneli ngokusekelwe kububanzi obungaphandle becandelo lomsonto. Qinisekisa ukuba udini lomngxuma lugudileyo kwaye alunabhobhozi ukunqanda ukonakalisa i-gasket yokutywina.

Inyathelo 2: Faka iGasket yokutywina

Slayida i-EPDM yokutywina igasket equkiweyo kwicandelo lomsonto, uyicinezele ngokuchasene nesiseko esifanelekileyo. Ukuba ukutywinwa kuyadingeka kumacala omabini ephaneli, beka i-gasket enye kwicala ngalinye.

Inyathelo 3: Faka NgePaneli

Faka icandelo lomsonto emngxunyeni ukusuka kwelinye icala lephaneli, uqinisekise ukuba isiseko esifanelekileyo siqhagamshelana nephaneli kunye ne-gasket yokutywina phakathi.

Inyathelo lesi-4: Qinisa iNti yokutshixa

Krwela i-nut yokutshixa kwicandelo lomsonto ukusuka kwelinye icala lephaneli, kwaye kancinci kancinci uyiqinise ngesitshixo. I-torque ecetyiswayo: 5-8 N · m kwizinto zobhedu kunye ne-8-12 N · m yensimbi engenasici. Gcina umzimba ofanelekileyo umile ngexesha lokuqinisa.

Inyathelo lesi-5: Qhagamshela iHose

Khetha inkcazo apho i-barb ye-diameter yangaphandle i-0.5-1 mm enkulu kune-hose diameter yangaphakathi. Faka umbhobho ngokuthe nkqo kwincam ehlabayo ide ifike kwisiseko. Ukusetyenziswa koxinzelelo oluphezulu, sebenzisa i-hose yensimbi engenasici kwaye uyibophe phakathi kwe-barbs yesibini neyesithathu.

Inyathelo lesi-6: Ukutywinwa koVavanyo lweMfezeko

Yenza uvavanyo loxinzelelo lwe-static ngamaxesha e-1.5 uxinzelelo lokusebenza. Ukuba akukho kuvuza imizuzu emithathu, ukufakela kuyafaneleka.
