Isikhokelo sokuFakelwa kwemibhobho

Kuthungelwano olukhulu lwemibhobho ehambisa amanzi, igesi, nolawulo kwihlabathi lethu lanamhlanje, ingqwalasela idla ngokuwela kwimibhobho ngokwazo okanye kwiivalvu eziyalela ukuhamba. Ukanti, abona benzi bokwenene beenkqubo ezintsonkothileyo, ezisebenzayo nezithembekileyo ngabo bathobekileyoizixhobo zombhobho. Ezi zixhobo zibalulekileyo zizihlanganisi, abalawuli, kunye neeadaptha eziguqula ubude obuthe ngqo bombhobho kwiisekethe ezinenjongo. Ukuqonda iintlobo zabo, imisebenzi, kunye neendlela zokukhetha zisisiseko kuyo nayiphi na iprojekthi yokuphatha ulwelo okanye igesi eyimpumelelo.

Imisebenzi enguNdoqo: Ngakumbi kunokuQhagamshela nje

Ufakelo lusebenza ngeenjongo ezibalulekileyo ngaphaya konxibelelwano olulula:

*   Ukutshintsha umkhomba-ndlela: Ingqiniba (ngokuqhelekileyo yi-45° okanye 90°) iqondisa ngokutsha imibhobho ejikeleze imiqobo okanye ecaleni kweecontours zesakhiwo.

*   ICandelo lokuHamba okanye iNdibaniselwano: IiTees kunye neMinqamlezo zahlula-hlula umqukuqelo omnye ube ngamasebe amaninzi okanye ukudibanisa ukungena okuninzi kwelinye.

*   Ukulungelelanisa ubungakanani: Izinciphisi kunye neeBushings ziqhagamshela imibhobho yeedayamitha ezahlukeneyo ngaphandle komthungo.

*   Ukwandiswa komgca: Izidibanisi zidibanisa imibhobho emibini yobukhulu obulinganayo ngendlela ethe ngqo.

*   Ukwenziwa kweZibuko: Iingono kunye neeSaddles zibonelela ngeendawo zokungena kwiimpompo, iigeyiji, okanye imigca encedisayo.

*   Ukupheliswa: IiCaps kunye neePlagi zitywina isiphelo sombhobho, ngokusisigxina okanye okwethutyana.

Iimpawu eziphambili: Izinto eziphathekayo, uQhagamshelo, kunye noYilo

Ukukhetha iihenjisi ezifanelekileyo kwiimpawu ezintathu eziphambili:

1.  Izinto eziphathekayo: Ukufakwa kufuneka kuhambelane nazo zombini imathiriyeli yombhobho kunye nendawo (ulwelo/igesi) eza kuyiphatha.

   *   Ubhedu kunye neBrass: Igqwesile kumanzi okusela, ukufudumeza, kunye nosetyenziso lwerhasi ethile. Ixhathisa ukubola kwaye kulula ukuyifaka nge-soldering okanye ngokucinezela-fit.

   *   Carbon Steel & Stainless Steel: Umgangatho wemizi-mveliso, uxinzelelo oluphezulu, kunye nosetyenziso lobushushu obuphezulu (umphunga, ioli, imichiza). Inika amandla aphezulu. I-stainless ibonelela ngokuxhathisa umhlwa.

   *   I-PVC, i-CPVC, kunye ne-PEX: Ibalasele kwimibhobho yala maxesha, yokunkcenkceshela, kunye nemigca yeekhemikhali ezinoxinzelelo oluphantsi. Ikhaphukhaphu, i-corrosion-proof, kwaye ihlala isebenzisa i-solvent welding (PVC) okanye icofa/i-crimp (PEX) uqhagamshelwano.

   *   Intsimbi eMalleable: Iyaziwa ngokuqina kwayo kuqwalaselo oluthungelweyo, oluqhele ukusetyenziswa kwirhasi enzima kunye nemigca yamanzi.

2.  Indlela yoQhagamshelwano: Oku kuchaza indlela ujongano olungena ngayo nombhobho.

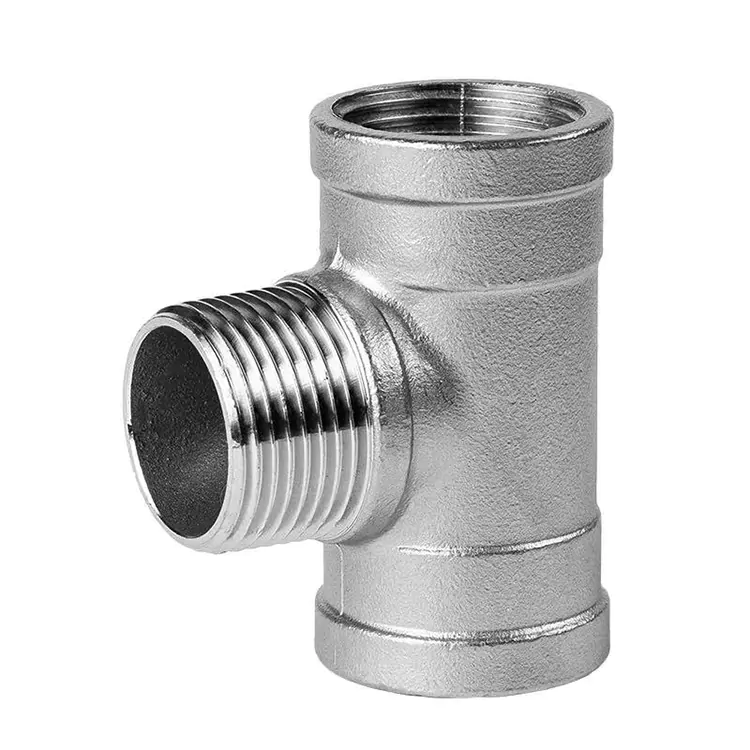

   *   Ene Threaded (Screwed): Indlela yakudala, eguquguqukayo kusetyenziswa imisonto e tapered (NPT). Ilungele ukugcinwa kweenkqubo ezinzima, ukuguqulwa kwentsimi, kunye noqhagamshelwano oluluqilima apho kunokufuneka khona ukuchithwa. Ifuna i-sealant kwindawo engavuziyo.

   *   Soldered/Brazed (Socket Weld): Ikakhulu yobhedu nentsimbi. Yenza ikhonkco elisisigxina, eligudileyo, nelithembekileyo ngokunyibilikisa isinyithi sokuzalisa kwisithuba esiphakathi kwesokethi esifanelekileyo kunye nombhobho. Kubalulekile kwimibhobho ephezulu yokunyaniseka kunye nemigca yenkqubo ebalulekileyo.

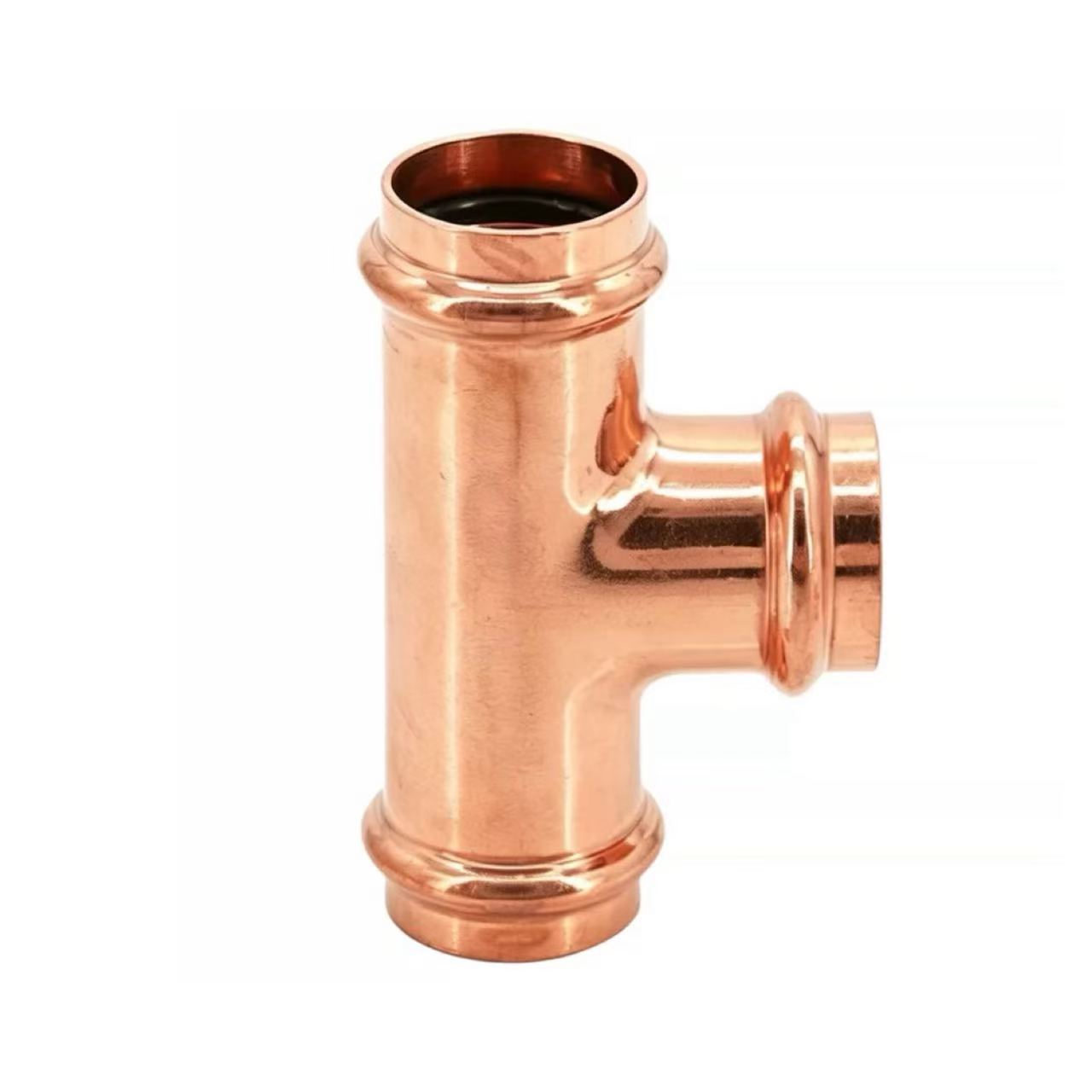

   *   I-Press-Fit: Indlela yangoku esebenzisa izixhobo ezikhethekileyo ukukrwitsha ukufakela nge-O-ring yangaphakathi kumbhobho. Inikeza uqhagamshelwano olukhawulezayo, olucocekileyo, noluthembeke kakhulu ngaphandle kobushushu okanye imisonto. Ukufumana ukwamkelwa ngokukhawuleza kwimibhobho yorhwebo kunye neenkqubo ze-hydronic.

   *   Push-to-Connect: Eyona ndlela ilula yokufakela imigca yethutyana okanye efikelelekayo (umzekelo, umoya ocinezelweyo, izixhobo). I-collet kunye ne-O-ring mechanism ivumela uxhulumaniso olungenasixhobo kunye nokukhululwa.

   *   I-Solvent Weld: Isetyenziselwa iinkqubo zeplastiki (PVC/CPVC). I-solvent yeekhemikhali iyanyibilika kwaye idibanise umbhobho kwaye ifake kwisiqwenga esisodwa, se-monolithic.

3.  Umlinganiselo woxinzelelo kunye neMigangatho:Ukufakwa kwemibhobhozenziwa kwiiklasi ezithile zoxinzelelo (umzekelo, iShedyuli ye-40, i-80, i-Class 150, i-300) kwaye kufuneka ihlangabezane nemigangatho yoshishino (ASTM, ASME, EN). Ukukhetha ukulinganisa ngoxinzelelo olulingana okanye olungaphezulu koxinzelelo oluphezulu lwenkqubo akuxoxiswana ngokhuseleko.

Isikhokelo soKhetho: Ukutshatisa ukuFaniswa koMsebenzi

Inkqubo yokhetho enengqiqo iqinisekisa ukuthembeka kwenkqubo:

1.  Chaza iNkonzo: Loluphi ulwelo okanye igesi? Kweyiphi iqondo lobushushu kunye noxinzelelo? Ngaba iyadleka? (umzekelo, Amanzi ashushu ashushu, i-80 ° C, i-6 bar).

2.  Khetha i-Pipe Material: Ngokusekelwe kwiimeko zenkonzo kunye nohlahlo lwabiwo-mali (umzekelo, ubhedu).

3.  Khetha iNdlela yoQhagamshelwano: Lungelelanisa ukusebenza, isakhono sokufakela, kunye neemfuno zofikelelo kwixesha elizayo (umzekelo, Cinezela-faka isantya kunye nokuthembeka).

4.  Chaza iNdlela yokuFaka noBukhulu: Khangela umsebenzi ofunekayo (umzekelo, 90° ingqiniba, 22mm x 22mm).

5.  Qinisekisa ukuhambelana: Qinisekisa ukuba izinto ezifanelekileyo, indlela yokutywina, kunye nomgangatho woxinzelelo zihambelana ngokupheleleyo nombhobho okhethiweyo kunye neeparamitha zenkqubo.

Isiphelo: ISiseko seMfezeko yeNkqubo

Ufakelo lwemibhobho zezona ziphumlisi zibalulekileyo kulwimi lweenkqubo zemibhobho. Ukukhetha kwabo okuchanekileyo kunye nofakelo kwenza isiseko sobomi obude benkqubo, ukhuseleko kunye nokusebenza kakuhle. Ngelixa zinokusebenza ngaphandle kwamehlo, ukucacisa umgangatho ophezulu, ukufakwa kwezinto ezifanelekileyo sesinye sezona zigqibo zinefuthe elinokwenziwa yinjineli, ikontraki, okanye umfakeli. Kumdaniso ontsonkothileyo we-fluid dynamics, la macandelo ngamaqabane athuleyo, angagungqiyo aqinisekisa ukuba yonke into ihamba ngendlela eyiliweyo.
